Scope: PWG
PWG-JE (Jets)
Energy
5.02 TeV
System
Pb-Pb
Figure Group
Figure Image
Figure image (.eps)
Figure image (.pdf)
Figure Caption

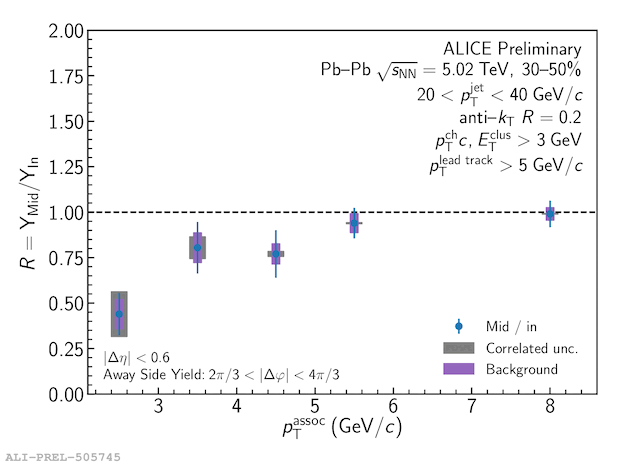

Ratios of Mid Plane/In Plane away side yields of RPF background subtracted correlation functions for 20-40 GeV ch. + ne. jets and > 2 GeV associated hadrons in 30-50 % central 5.02 TeV PbPb collisions.
Detail description
Mid/In Away Side Yield Ratios, pT^assoc. > 2 GeV
RPF fit only done in near side background dominated region (see figure)
LHC2018q
Pass3
Event Cuts:
Track Cuts: Chi^2 / NDF < 4, TPC + ITS refit,
AliROOT tag: vAN-20220210-1
*Still needs to be re-run with 2018 EP calibrations (used 2015 instead)
