Scope: PWG
PWG-CF (Flow and Correlations)
Energy
5.02 TeV
System
Pb-Pb
Figure Group
Figure Image

Figure image (.eps)
Figure image (.pdf)
Figure Caption

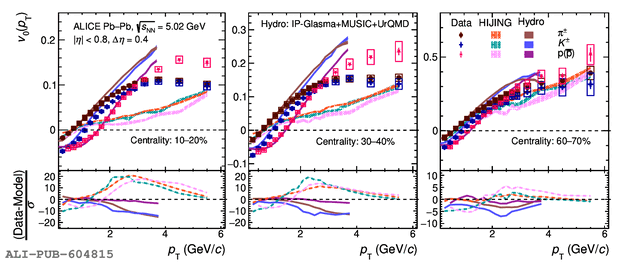

$v_{0}(p_\mathrm{T})$ of pions ($\pi^{\pm}$), kaons ($\mathrm{K}^{\pm}$), and protons ($\mathrm{p}(\bar{\mathrm{p}})$) shown as a function of $p_\mathrm{T}$ in Pb$-$Pb collisions at $\sqrt{s_\mathrm{NN}} = 5.02$ TeV for centrality intervals 10$-$20\% (left), 30$-$40\% (middle), and 60$-$70\% (right). The measurements are compared to results from HIJING~ and IP-Glasma+MUSIC+UrQMD~ models. The statistical (systematic) uncertainties are represented by vertical bars (boxes). The bottom panels show the (Data-Model)/$\sigma$, representing the deviation between the experimental data and model predictions, normalized by the uncertainty.
Detail description
Figure extracted from paper
