Ds2* Invariant Mass 6<pT<8 GeV/c

Figure Information
Scope: PWG
PWG-HF (Heavy Flavour)
Energy
13.6 TeV
System
p-p
Figure Group
Ds1+and Ds2*+ production in pp collisions at 13.6 TeV
Figure Image
Figure image (.eps)
plot_ds2star_2.eps
Figure image (.pdf)
plot_ds2star_2.pdf
Figure Caption

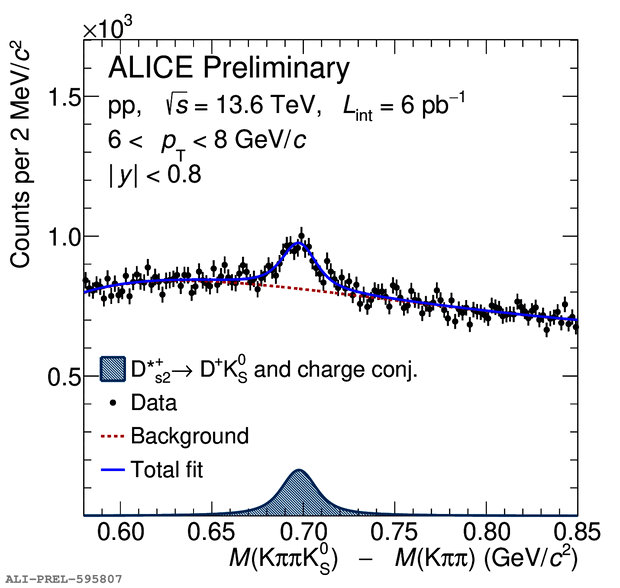

Fit to invariant mass distribution of Ds2* with 6<pT<8 GeV/c. Signal is described with a Voigtian PDF and background with a threshold function with a second degree polinomial as exponent.

Detail description

Data sample: LHC22o_apass7, LHC23_thin_apass4
