Search for quasi-particle scattering in the quark-gluon plasma with jet splittings in pp and Pb$-$Pb collisions at $\sqrt{s_{\rm NN}}$ = 5.02 TeV
Figure Image
Figure image (.eps)
unfolded_kt_pp_PbPb_spectra_fit_dynamical_kt_soft_drop_z_cut_02_model_data_ratios_R02.eps
Figure image (.pdf)
unfolded_kt_pp_PbPb_spectra_fit_dynamical_kt_soft_drop_z_cut_02_model_data_ratios_R02.pdf
Figure Caption

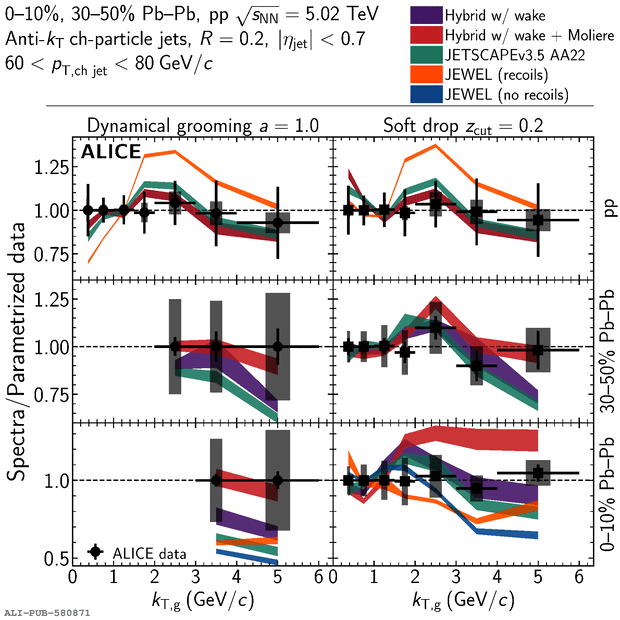

Ratio of $\kTg{}$ distributions for data and model calculations to a smooth parametrization of the data, selected by \dygA{1.0} (left) and \sdZ{0.2} (right). Data points are shown in black, with statistical (error bars) and systematic (grey boxes) uncertainties. The bands for the model calculations show statistical uncertainties.
