Performance of the ALICE Electromagnetic Calorimeter

Description
Figures from paper submitted to Journal of Instrumentation -JINST
Abstract:

The performance of the electromagnetic calorimeter of the ALICE experiment during operation in 2010-2018 at the Large Hadron Collider is presented. After a short introduction into the design, readout, and trigger capabilities of the detector, the procedures for data taking, reconstruction, and validation are explained. The methods used for the calibration and various derived corrections are presented in detail. Subsequently, the capabilities of the calorimeter to reconstruct and measure photons, light mesons, electrons and jets are discussed. The performance of the calorimeter is illustrated mainly with data obtained with test beams at the Proton Synchrotron and Super Proton Synchrotron or in proton-proton collisions at $\sqrt{s}=13$ TeV, and compared to simulations.

JINST 18 (2023) P08007
e-Print: arXiv:2209.04216 | PDF | inSPIRE

Paper:

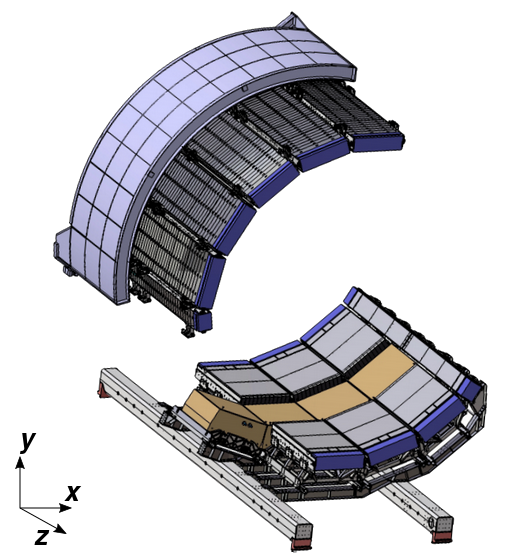

Figure 1a
Energy
5.02 TeV
7 TeV
8 TeV
13 TeV
Figure image (.eps)
Figure 1b
Energy
5.02 TeV
7 TeV
8 TeV
13 TeV
Figure image (.eps)
aliceSlice.eps
Figure image (.pdf)
aliceSlice.pdf

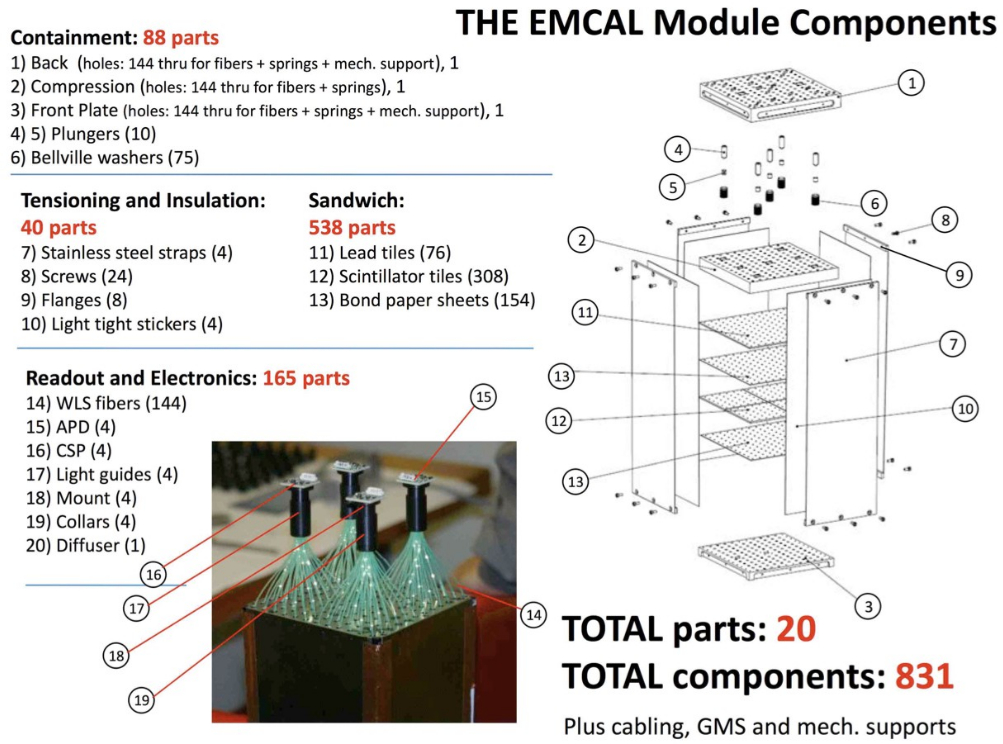

Figure 2
Energy
5.02 TeV
7 TeV
8 TeV
13 TeV
Figure image (.eps)
Figure 3
Energy
5.02 TeV
7 TeV
8 TeV
13 TeV
Figure image (.eps)
Figure 4
Energy
5.02 TeV
7 TeV
8 TeV
13 TeV
Figure image (.eps)

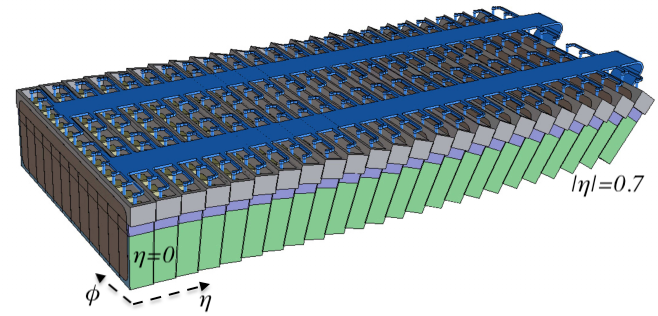

EMCal_supermodule_subparts_color.eps
