Charged-particle sum-pT density in Near Side (Toward region) for track pT > 0.5GeV/c in pPb collisions at sqrt(s) = 5.02 TeV

Figure Information
Scope: PWG
PWG-MM (Monte Carlo generators and Minimum Bias)
Energy
5.02 TeV
System
p-p
p-Pb
Figure Image
Figure image (.eps)
ModelCompare_ppb_SumPt_NS_1.eps
Figure image (.pdf)
ModelCompare_ppb_SumPt_NS_1.pdf
Figure Caption

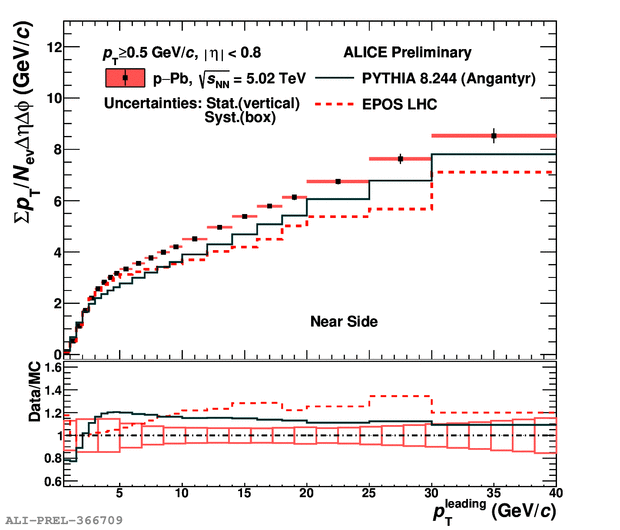

The summed pT density as a function of pT leading for NearSide (towards region) in p-Pb collision at √sNN = 5.02 TeV are displayed with comparison to MC models PYTHIA 8.244 (Angantyr, solid green line) and EPOS LHC (dotted orange line).
