Ratio of the integrated cross section of single D⁰ mesons over D⁰D⁰ and D⁰D⁰bar pairs

Figure Information
Scope: PWG
PWG-HF (Heavy Flavour)
Energy
13.6 TeV
System
p-p
Figure Group
Associated production of D⁰D⁰ and D⁰D⁰bar pairs in pp collisions at 13.6 TeV
Figure Image
Figure image (.eps)
ratios_0.eps
Figure image (.pdf)
ratios_0.pdf

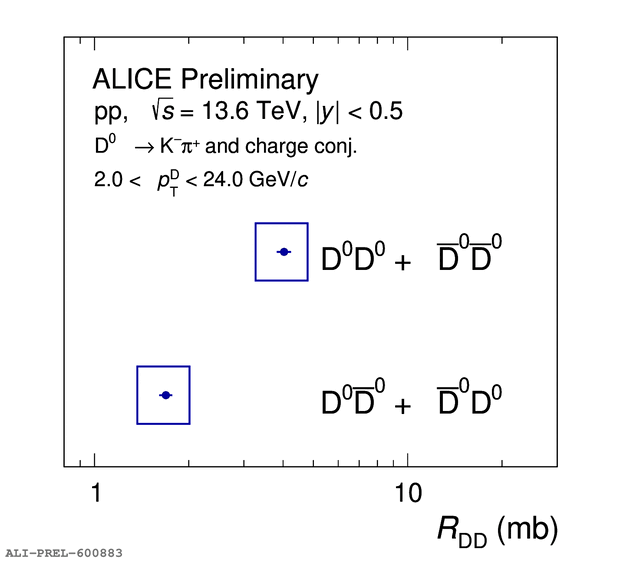

Figure Caption

Ratio of the integrated cross section of single D⁰ mesons over D⁰D⁰ and D⁰D⁰bar pairs midrapidity for candidates with $2 < p_\rm{T} < 24$ GeV/$c$ for the $p_\rm{T}$ of the single D⁰. The single D⁰ cross section was taken from the measurement at $\sqrt{s} = 13% TeV.
