Production cross section of $\mathrm{B^0}$ mesons in pp collisions at $\sqrt{s}=13.6~\mathrm{TeV}$ compared to theoretical predictions

Figure Information
Scope: PWG
PWG-HF (Heavy Flavour)
Energy
13.6 TeV
System
p-p
Figure Group
$\mathrm{B^0}$-meson production cross section in pp collisions at $\sqrt{s}=13.6~\mathrm{TeV}$
Figure Image
Figure image (.eps)
cross_section_vs_pred.eps
Figure image (.pdf)
cross_section_vs_pred.pdf

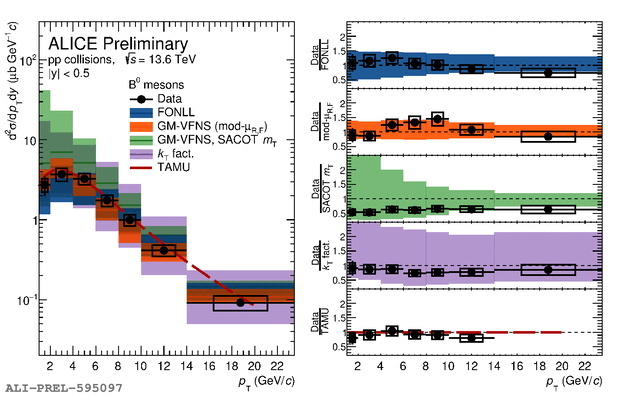

Figure Caption

$\pt$-differential production cross section of $\mathrm{B^0}$ mesons measured at midrapidity ($|y|<0.5$) in pp collisions at  $\sqrt{s}=13.6~\mathrm{TeV}$ compared with FONLL, GM-VFNS(mod-$\mu_\mathrm{R,F}$), GM-VFNS(SACOT-$m_\mathrm{T}$), $k_\mathrm{T}$-factorisation, and TAMU calculations (left panel) and ratios of the data to the theoretical predictions (right panel).

Detail description

Dataset: LHC23_apass4_skimmed, LHC24_apass1_skimmed
