Comparison of EEC distributions for charged jets in pp and p-Pb collisions -- 40-60 GeV/c

Figure Information
Scope: PWG
PWG-JE (Jets)
Energy
5.02 TeV
System
p-Pb
Figure Group
Energy-energy correlator measurements for jets in p-Pb collisions at 5.02TeV
Figure Image
Figure image (.eps)
detcorr_pp_eec_ak4_ch_4060_trk10_jetpt.eps
Figure image (.pdf)
detcorr_pp_eec_ak4_ch_4060_trk10_jetpt.pdf
Figure Caption

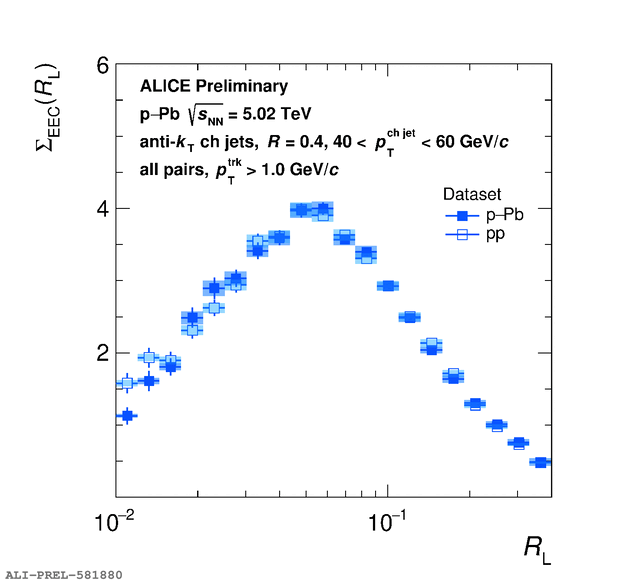

EEC cross-section per jet as function of R_L in 40-60 GeV/c jets in pp and p-Pb. y axis corresponds to the total EEC cross section in each R_L bin divided by the bin size.

Detail description

LHC16qt
