Near side $(|\Delta\varphi|<\pi/2)$ longitudinal projections of the two-particle transverse momentum correlation $G_{2}^{\rm CD}$ from pp collisions at $\sqrt{s} = 7\;\text{TeV}$

Figure Information
Scope: PWG
PWG-CF (Flow and Correlations)
Energy
7 TeV
System
p-p
Figure Group
Characterizing system dynamics with two-particle transverse momentum correlations in pp, p--Pb, and Pb--Pb collisions
Figure Image
Figure image (.eps)
G2DeltaEta_ppCD.eps
Figure image (.pdf)
G2DeltaEta_ppCD.pdf
Figure Caption

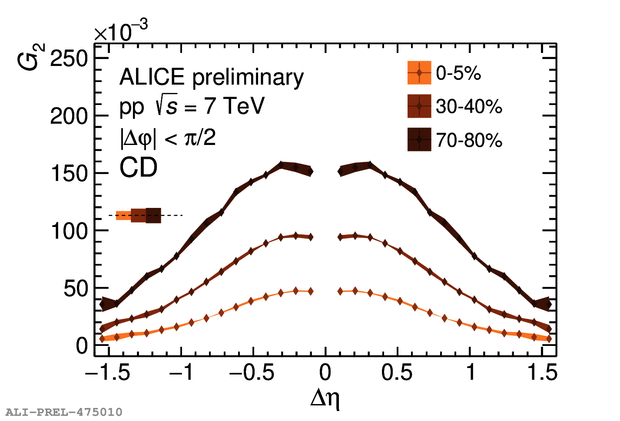

Near side $(|\Delta\varphi|<\pi/2)$ longitudinal projections of the two-particle transverse momentum correlation $G_{2}^{\rm CD}$ from 0--5%, 30--40% and 70--80% multiplicity classes pp collisions at $\sqrt{s} = 7\;\text{TeV}$

Detail description

Vertical bars (mostly smaller than the marker size) and shaded bands represent statistical and systematic uncertainties, respectively. The systematic uncertainties on the long-range mean correlator strength are represented as a horizontal multi-short shaded band at the left of the plot. Under-corrected correlator values at $\Delta\eta = 0$ is not shown.
