Scope: PWG
PWG-JE (Jets)
Energy
5.02 TeV
System
p-p
Figure Group
Figure Image
Figure image (.eps)
Figure image (.pdf)
Figure Caption

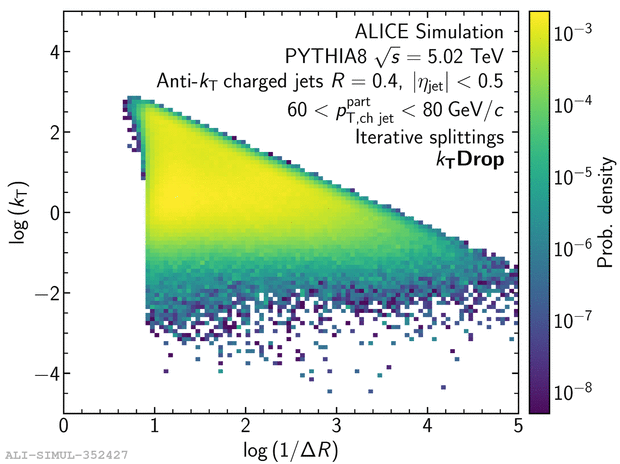

Lund Plane for dynamical $k_{\mathrm{T}}$ grooming method appled to R=0.4 jets found in particle level PYTHIA8 Monash 2013 at $\sqrt{s}=5.02$ TeV. Dynamical kt is also known as ktDrop and it is implemented with a=1 for the general dynmical grooming method.
Detail description
- Pythia: LHC18b8
