[Figure 3] Particle yield ratios Lambda/K0s and p/π as a function of dNch/dη

Figure Information
Scope: PWG
PWG-LF (Light Flavour Spectra)
Energy
7 TeV
System
p-p
Figure Group
[Paper] Multiplicity-dependent enhancement of strange and multi-strange hadron production in proton-proton collisions at √s = 7 TeV
Figure Image
Figure image (.eps)
2016-Jun-26-bmratios.eps
Figure image (.pdf)
2017-Jun-29-bmratios.pdf
Figure Caption

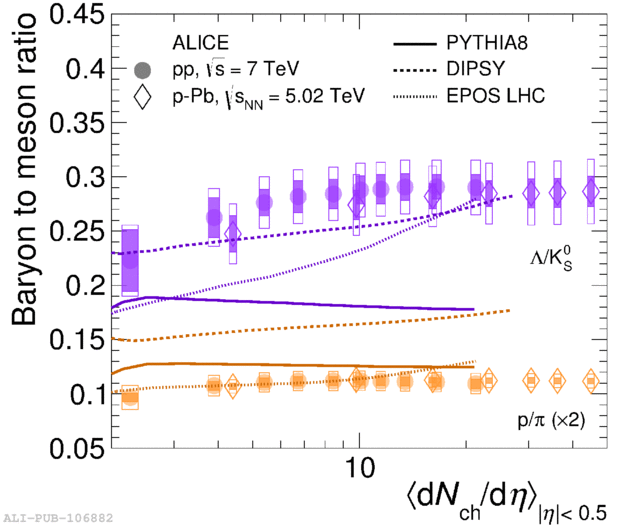

(color online) Particle yield ratios \sLambda/\pKzero = ($\pLambda+\apLambda$)/\sKzero and \sPr/\sPi = ($\pProton+\apProton$)/($\pPiplus+\pPiminus$) as a function of \average{\dnchdeta} measured in the rapidity interval \yless{0.5}. The empty and dark-shaded boxes show the total systematic uncertainty and the contribution uncorrelated across multiplicity bins, respectively. The values are compared to calculations from MC models~\cite{Sjostrand:2007gs,Pierog:2013ria,Flensburg:2011kk,Bierlich:2014xba,Bierlich:2015rha} in pp collisions at \sqrts = 7 TeV and to results obtained in \pPb collisions at the LHC~\cite{Adam:2015vsf}.
Detail description

(color online) Particle yield ratios \sLambda/\pKzero = ($\pLambda+\apLambda$)/\sKzero and \sPr/\sPi = ($\pProton+\apProton$)/($\pPiplus+\pPiminus$) as a function of \average{\dnchdeta} measured in the rapidity interval \yless{0.5}. The empty and dark-shaded boxes show the total systematic uncertainty and the contribution uncorrelated across multiplicity bins, respectively. The values are compared to calculations from MC models~\cite{Sjostrand:2007gs,Pierog:2013ria,Flensburg:2011kk,Bierlich:2014xba,Bierlich:2015rha} in pp collisions at \sqrts = 7 TeV and to results obtained in \pPb collisions at the LHC~\cite{Adam:2015vsf}.
