[Figure 1] pT-differential yields of K0s, Lambda, Xi and Omega

Figure Information
Scope: PWG
PWG-LF (Light Flavour Spectra)
Energy
7 TeV
System
p-p
Figure Group
[Paper] Multiplicity-dependent enhancement of strange and multi-strange hadron production in proton-proton collisions at √s = 7 TeV
Figure Image
Figure image (.eps)
2017-Jun-28-spectra.eps
Figure image (.pdf)
2017-Jun-29-spectra.pdf
Figure Caption

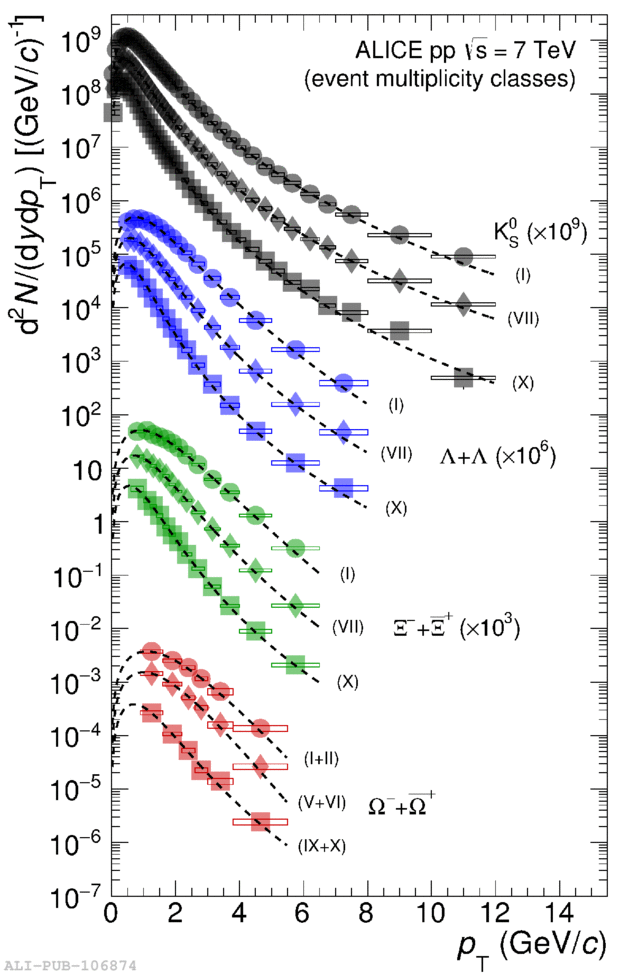

 \pt-differential yields of \pKzero, $\pLambda+\apLambda$, $\pXi+\apXi$ and $\pOmega+\apOmega$ measured in \yless{0.5} for a selection of event classes, indicated by roman numbers in brackets (see Table~\ref{tab:multi}). The data are scaled by different factors to improve the visibility. The dashed curves represent Tsallis-L\'evy fits to each individual distribution to extract integrated yields.

Detail description

 \pt-differential yields of \pKzero, $\pLambda+\apLambda$, $\pXi+\apXi$ and $\pOmega+\apOmega$ measured in \yless{0.5} for a selection of event classes, indicated by roman numbers in brackets (see Table~\ref{tab:multi}). The data are scaled by different factors to improve the visibility. The dashed curves represent Tsallis-L\'evy fits to each individual distribution to extract integrated yields.
