Scope: PWG
PWG-LF (Light Flavour Spectra)
Energy
5.02 TeV
System
Pb-Pb
Figure Image

Figure image (.eps)
Figure image (.pdf)
Figure Caption

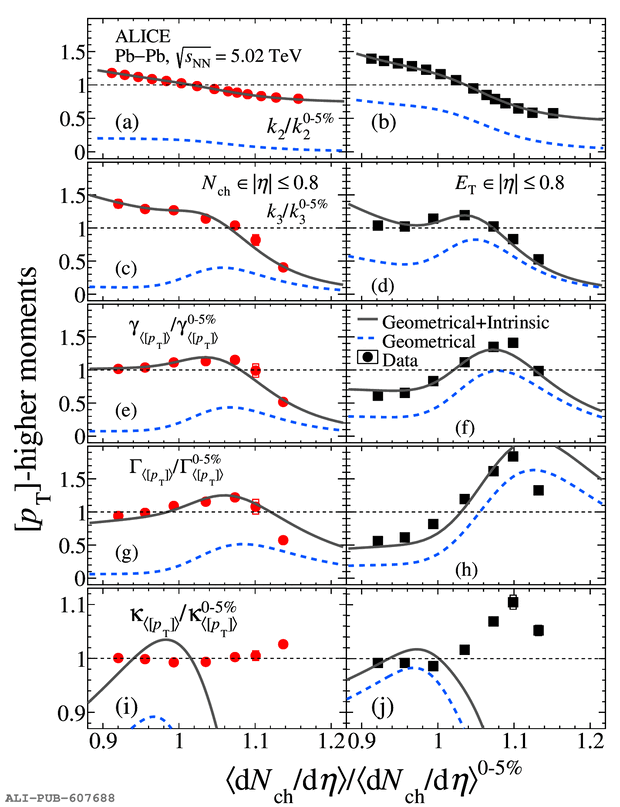

Higher-order moments of $[\pt]$ measured for events selected with the \nch (I) and \et (III) centrality estimators at midrapidity in \PbPb collisions at \fivenn are shown in the left and right columns, respectively. The \ktwnorm distributions are fitted with a two-component model (continuous gray line), where the estimated Geometrical component is also shown (dotted-dashed blue line)~. The curves for the \kthnorm, \stdsknorm, \intsknorm, and \kunorm distributions correspond to predictions based on the fit of \ktwnorm~.
Detail description
Figure extracted from paper
