Scope: PWG
PWG-CF (Flow and Correlations)
Energy
5.02 TeV
System
Pb-Pb
Figure Group
Figure Image
Figure image (.eps)
Figure image (.pdf)
Figure Caption

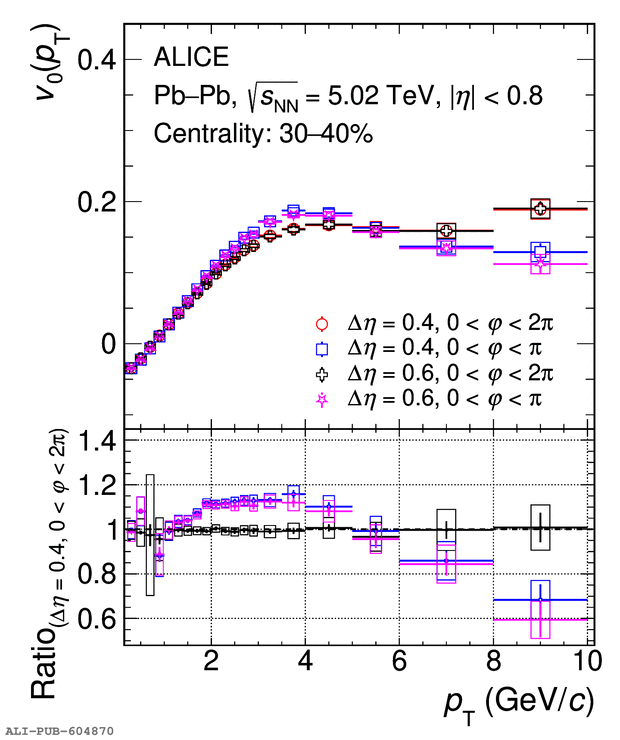

$v_{0}(p_\mathrm{T})$ of inclusive charged particles shown as a function of $p_\mathrm{T}$ for centrality intervals 10$-$20\% (left), 30$-$40\% (middle), and 60$-$70\% (right) for varying pseudorapidity gap ($\Delta\eta$) and azimuthal acceptance ($\varphi$) in Pb$-$Pb collisions at $\sqrt{s_\mathrm{NN}} = 5.02$ TeV. The statistical (systematic) uncertainties are represented by vertical bars (boxes). The bottom panel presents the ratio relative to the results for $\Delta\eta = 0.4, 0 \varphi 2\pi$.
Detail description
Figure extracted from paper
