Scope: PWG
PWG-CF (Flow and Correlations)
Energy
5.02 TeV
System
Pb-Pb
Figure Group
Figure Image
Figure image (.eps)
Figure image (.pdf)
Figure Caption

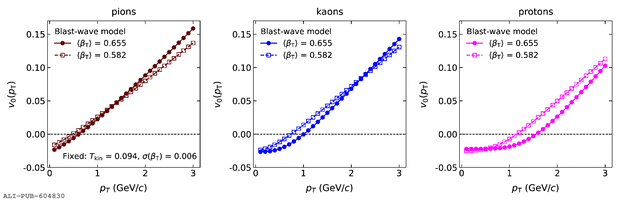

$v_{0}(p_\mathrm{T})$ of pions (left), kaons (middle), and protons (right) shown as a function of $p_\mathrm{T}$ using blast-wave model parameters from Ref.~. The open marker represents results for a slightly smaller value of $\langle\beta_\mathrm{T}\rangle$.
Detail description
Figure extracted from paper
