Figure 1

Scope: PWG
PWG-HF (Heavy Flavour)
Energy
13 TeV
System
p-p
Figure Image
Figure Caption

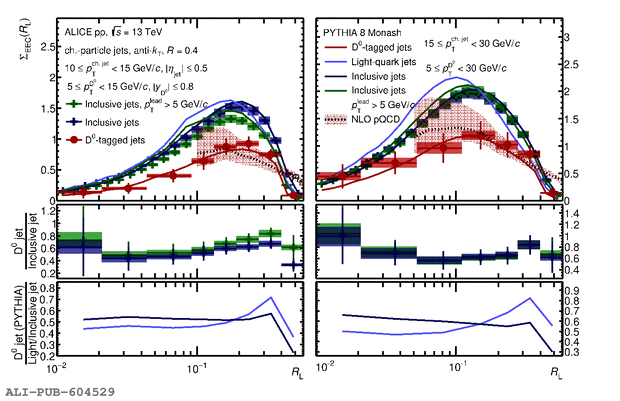

\Dzero-tagged jet (red) EEC distribution compared to inclusive jets with no leading track \pt selection (blue) and inclusive jets with a 5 \GeVc~leading-track \pt selection (green), to PYTHIA~8 simulations, and to pQCD predictions~ in the \jetptrange{10}{15} (left) and \jetptrange{15}{30} (right) jet-\pt intervals. The middle panel shows the ratio of \Dzero-tagged jets to inclusive jets in the data. The bottom panel compares the ratio of \Dzero-tagged jets to inclusive jets with the ratio of \Dzero-tagged jets to light-quark jets in PYTHIA~8. The error bars show the statistical error, and the boxes represent the systematic error.

Detail description

Figure extracted from paper
