Scope: PWG
PWG-CF (Flow and Correlations)
Energy
5.02 TeV
13 TeV
System
p-p
p-Pb
Figure Group
Figure Image
Figure image (.eps)
Figure image (.pdf)
Figure Caption

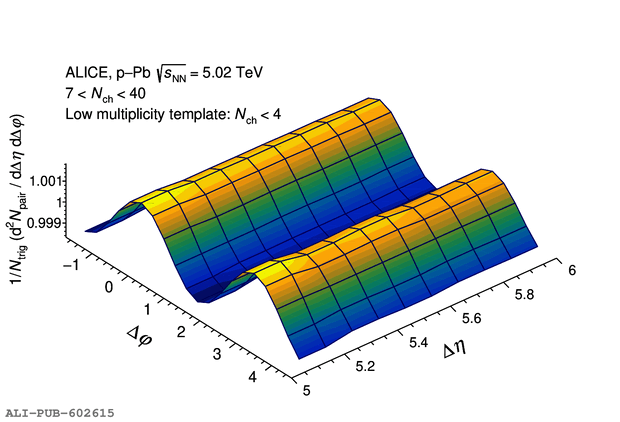

The ultra-long-range (\(|\Delta \eta| > 5.0\)) per-trigger yield, measured as a function of \(\Delta \eta\) and \(\Delta \varphi\) in p--Pb collisions at \(\sqrt{s_{\text{NN}}} = 5.02\)~TeV for \(7 N_{\text{ch}} 40\), shows a double-ridge structure after non-flow removal using the template-fit method.
Detail description
Figure extracted from paper
