Scope: PWG
PWG-HF (Heavy Flavour)
Energy
5.36 TeV
System
Pb-Pb
Figure Group
Figure Image
Figure image (.eps)
Figure image (.pdf)
Figure Caption

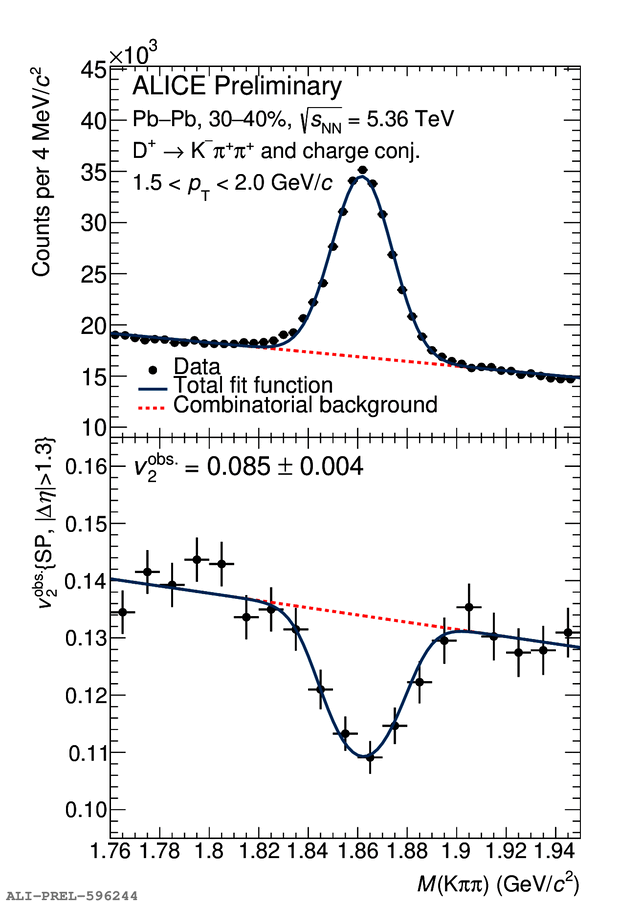

Simultaneous fit of the invariant-mass distribution and $\it{v}_{\rm 2}$ versus invariant mass of $\rm {D^+}$ candidates in the 1.5 < $p_{\rm T}$ < 2.0 GeV/$\it{c}$ interval and 30--40% centrality class.
Detail description
Simultaneous fit of the invariant-mass distribution and $\it{v}_{\rm 2}$ versus invariant mass of $\rm {D^+}$ candidates in the 1.5 < $p_{\rm T}$ < 2.0 GeV/$\it{c}$ interval and 30--40% centrality class.
