Figure 5

Figure Information
Scope: PWG
PWG-LF (Light Flavour Spectra)
Energy
5.02 TeV
System
p-Pb
Figure Group
Charged-particle multiplicity distributions over a wide pseudorapidity range in p-Pb collisions at $\mathbf{\sqrt{s}_{\rm NN} = 5.02}$ TeV
Figure Image
Figure image (.eps)
ComparisonMultWithModel_AllEta_update.eps
Figure image (.pdf)
ComparisonMultWithModel_AllEta_update.pdf
Figure Caption

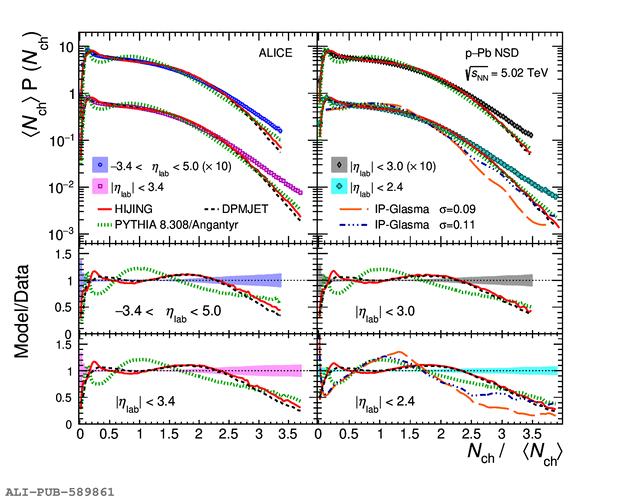

KNO-scaled multiplicity distribution versus the KNO variable $N_{\rm ch}/\langle N_{\rm ch}\rangle$ in NSD \pPb collisions at \fivenn for various pseudorapidity intervals. Comparison with predictions from HIJING, DPMJET, \angantyr, and the IP-Glasma model are shown. The ratios between models and data are calculated using a linear interpolation between adjacent points.

Detail description

Figure extracted from paper
