Scope: PWG
PWG-LF (Light Flavour Spectra)
Energy
13 TeV
System
p-p
Figure Group
Figure Image
Figure image (.eps)
Figure image (.pdf)
Figure Caption

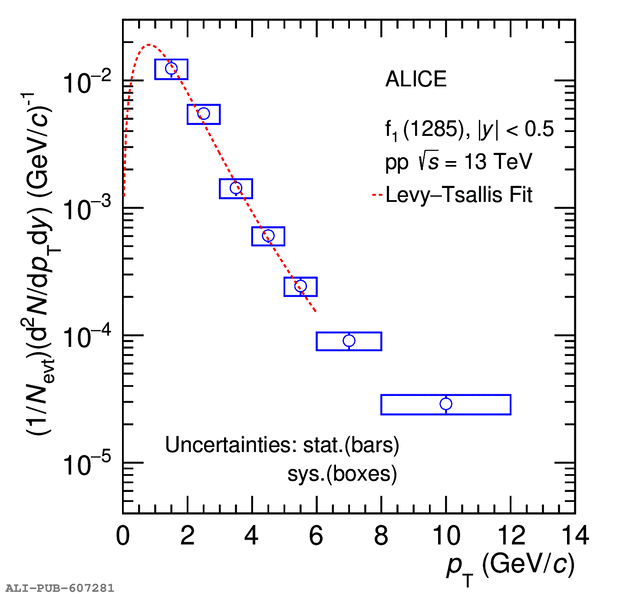

\pt-differential yield of \fone\xspace measured at midrapidity ($|y|$ 0.5) in inelastic pp collisions at \ENthirteen. The statistical and systematic uncertainties are shown as bars and boxes, respectively. The data points are fitted using a Levy--Tsallis function~ and shown by the red dashed line. The BR uncertainty for \foneDC\xspace is 0.1\%.
Detail description
Figure extracted from paper
