Multiplicity class dependence of Σ - 1

Figure Information
Scope: PWG
PWG-CF (Flow and Correlations)
Energy
13 TeV
System
p-p
Figure Group
Forward-backward multiplicity correlations in pp collisions expressed in terms of strongly intensive observable Σ
Figure Image
Figure image (.eps)
mult_0.eps
Figure image (.pdf)
mult_0.pdf
Figure Caption

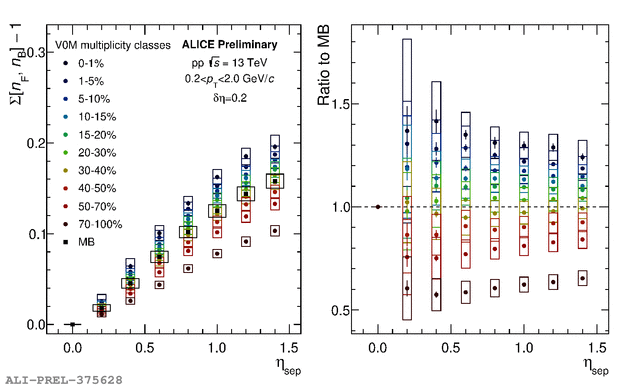

Multiplicity class dependence of Σ[nF, nB] - 1 as a function of distance between the centers of 2 windows of size δη=0.2 separated in pseudorapidity (ηsep)

Detail description

Windows are arranged symmetrically relative to η=0 and cover the full 2π azimuth. Min. bias trigger (kINT7) data was used.
