Scope: PWG
PWG-DQ (Dileptons and Quarkonia)
Energy
5.02 TeV
System
Pb-Pb
Figure Group
Figure Image
Figure image (.eps)
Figure image (.pdf)
Figure Caption

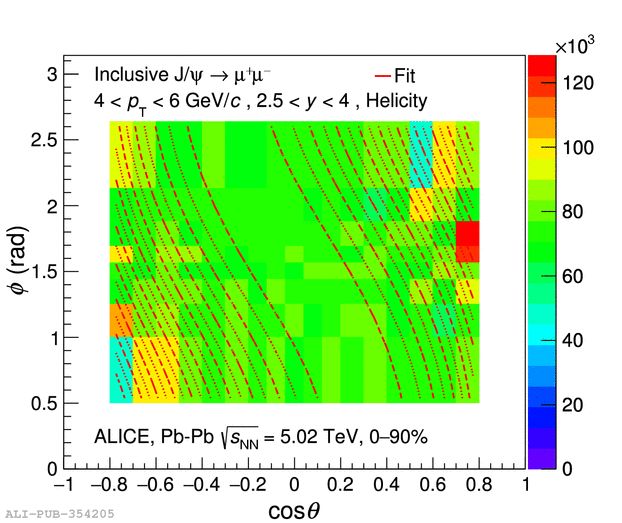

Fit to the J/$\psi$ 2D angular distributions in the helicity (left figure) and Collins-Soper (right figure) reference frames for $2.5<\textit{y}<4$ and $4<\textit{p}_{\rm{T}}<6$ GeV/$\textit{c}$. The entries in the figures correspond to the J/$\psi$ raw yield corrected for the acceptance times reconstruction efficiency.
Detail description
Fit to the Acceptance-times-efficiency corrected J/psi distribution as a function of cosTheta and phi in the Helicity reference frame for 4 < pT < 6 GeV/c
