Deuteron mass squared vs momentum in presence of TRD

Scope: PWG
PWG-LF (Light Flavour Spectra)
Energy
5.02 TeV
System
p-Pb
Figure Image
Figure Caption

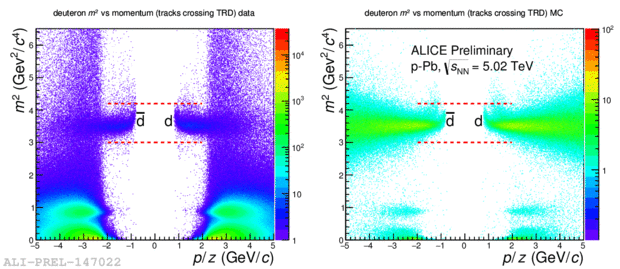

Distribution of of (anti-)deuteron momentum vs squared mass in the presence of TRD material in data (left) and MC (right).

Detail description

TRD, mass squared

The data type used is Event Summary Data (ESD).

The following runs are used for run1: LHC13b 195344 195351 195389 195391 195478 195479 195480 195481 195482 195483 LHC13c 195529 195531 195566 195567 195568 195592 195593 195596 195633 195635 195644 195673 195675 195677.

The standard physics selection was used for event selection with the requirement of INT7 trigger.
