Scope: PWG
PWG-LF (Light Flavour Spectra)
Energy
5.02 TeV
System
p-Pb
Figure Group
Figure Image
Figure image (.eps)
Figure image (.pdf)
Figure Caption

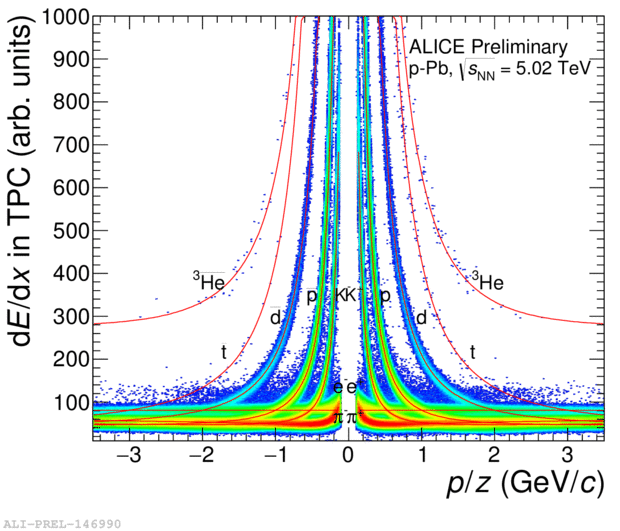

Identification of (anti-)deuteron and (anti-)particles due to specific energy loss in TPC vs particle momentum in p-Pb collisions at √sNN 5.02 TeV. The solid red lines represent the parameterisation of the expected mean energy loss of different particles (pions, kaons, protons, deuterons,) and their (anti-)particles.
Detail description
TPC, Performance plot. The data type used is Event Summary Data (ESD). The following runs are used for run1: LHC13b 195344 195351 195389 195391 195478 195479 195480 195481 195482 195483 LHC13c 195529 195531 195566 195567 195568 195592 195593 195596 195633 195635 195644 195673 195675 195677 The standard physics selection was used for event selection with the requirement of INT7 trigger.
