Scope: PWG
TOF
Energy
5.02 TeV
System
p-p
Figure Group
Figure Image
Figure image (.eps)
Figure image (.pdf)
Figure Caption

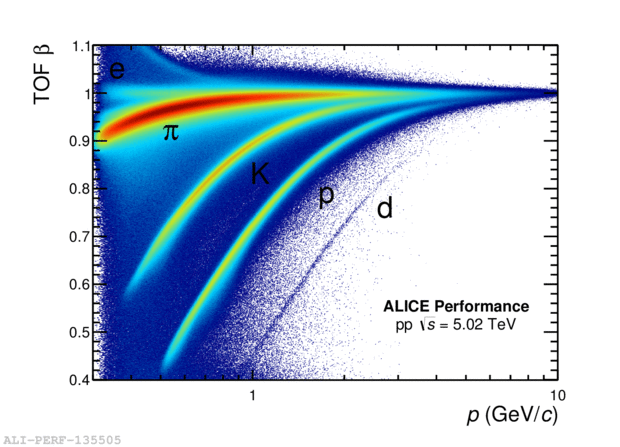

TOF Beta vs Momentum performance plot in pp collisions at 5.02 TeV
Detail description
- LHC15n pass3
- Tracks are selected with standard cuts inside the pseudorapidity region |eta| < 0.8
The visible bands are from e, pi, k, p and d.
The contribution from wrongly associated tracks can be seen outside the bands.
